Microduino GPS NEO 6M
Microduino GPS NEO 6M Microduino GPS NEO 6M Microduino GPS NEO 6M

Microduino GPS NEO 6M

Prix : 7.000,00DA
H.T : 7.000,00DA
Modèle : DZD000426
Fabricant : Microduino
Disponibilité : 4 à 8 Semaines
N° de visites: 1077
Qté :

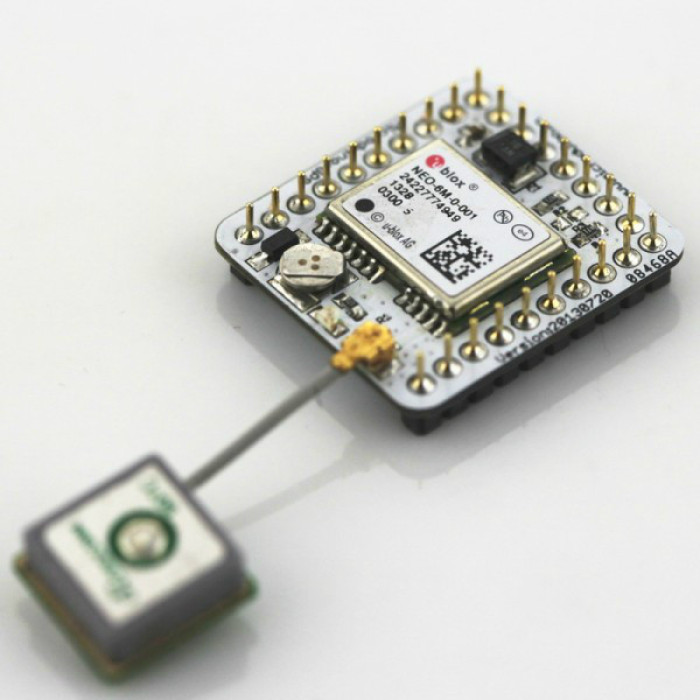

Microduino-NEO module maybe the most beautiful GPS module that you've seen. Its core module use UBLOX NEO-6M, high sensitivity, update rate up to 5Hz, using mini ceramic antenna with IPEX interface, and build-in a rechargeable battery backup.

Microduino-NEO-6M
  • Core modules using UBLOX NEO-6M
  • Use serial to communicate with Core module
  • UPin-27: Microduino standard interface
  • High sensitivityï¼›
  • Update rate up to 5Hzï¼›
  • With a powerful PC support：u-centerï¼›
  • PPS indicator，easily determine the current status of the moduleï¼›
  • Built-in rechargeable backup battery (to support warm start or hot start)ï¼›
  • Small, cheap, stackable, opened platform;
  • Open source hardware circuit design, compatible with the Arduino IDE development environment for programming; ï¼›
  • Define unified interface Microduino specification and contain rich peripheral modules. Set up the quick connection with other Microduino modules and sensors easily and flexibly.
  • 2.54 pitch row female connector for easy integration into breadboard.
  • Communication protocol：
Microduino NEO-6M module use NMEA-0183 protocol and output GPS data, using the UBX protocol to configure the module.

  • Reception characteristics
50 channels，GPS L1(1575.42Mhz) C/A 码，SBAS:WAAS/EGNOS/MSAS
Capture tracking sensitivity：-161dBm

  • Positioning accuracy
2.5 mCEP （SBAS：2.0mCEP）

  • Update rate
Maximum 5Hz

  • Capture time
cold start：27S（Fastest time）
warm start：27S
hot start：1S

  • Note：
Cold start means that module stored history information which GPS receiver has lost (corresponding to the main power supply and battery both lost power), then restart the module, called cold start.
Warm start means that the is the module saved the historical information, but this information is inconsistent with information of currently visible satellites, and under such conditions to start module, called warm start.
Hot start means that module stored GPS history information which consistent with the currently visible satellite's information, then restart the module, called a hot start.

  • Interface characteristics
TTL，compatible 3.3V/5V microcontroller system
Serial communication baud rate：
    Microduino NEO-6M module supports several baud rate：4800、9600、38400（defult）、57600ï¼›

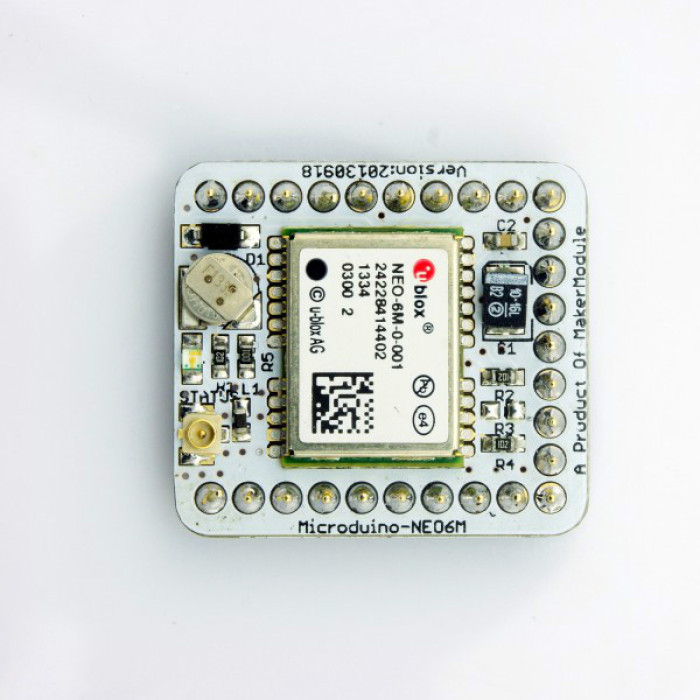

  • Set the baud rate by two resistors (R3,R4,recommend value is 1k)：
R3 R4 Protocol Baud rate
No welding No welding NMEA 9600
No welding welding NMEA 38400
welding No welding NMEA 4800
welding welding UBX 57600

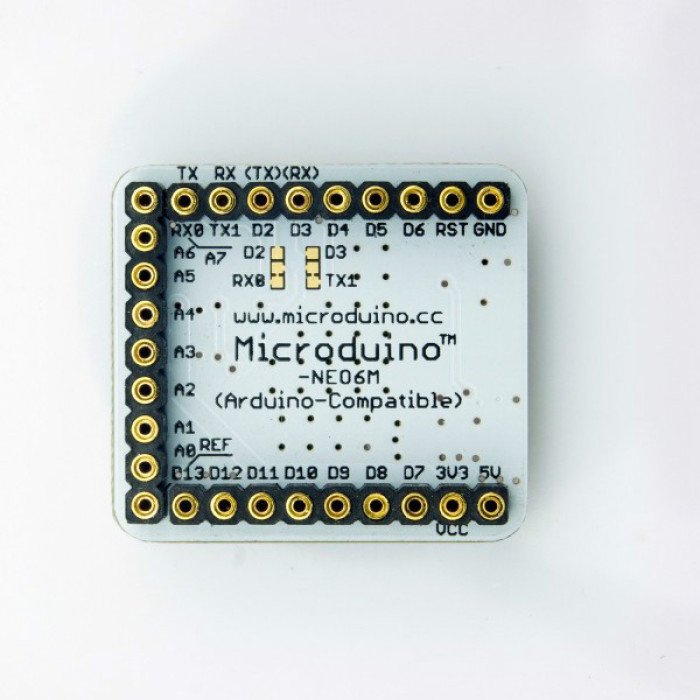

Pin Description



NEO-6M Module Pin Microduino Pin Function
TX RX0（or D2） Module serial send pin (TTL level), connect to microcontroller's RXD
RX TX1（or D3） Module serial receive pin (TTL level), connect to microcontroller's MCU TXD
