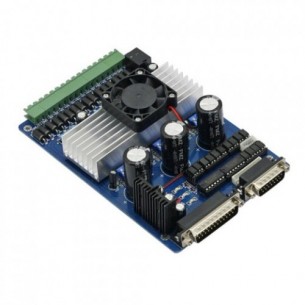

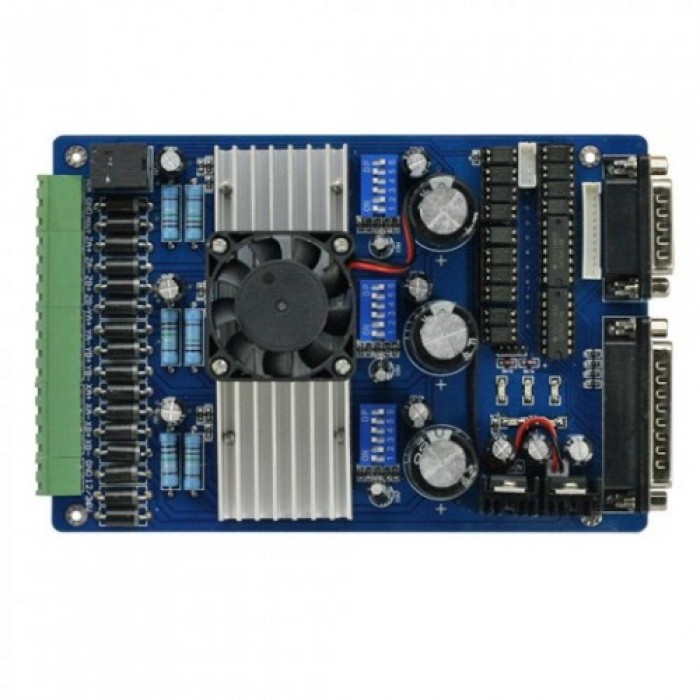

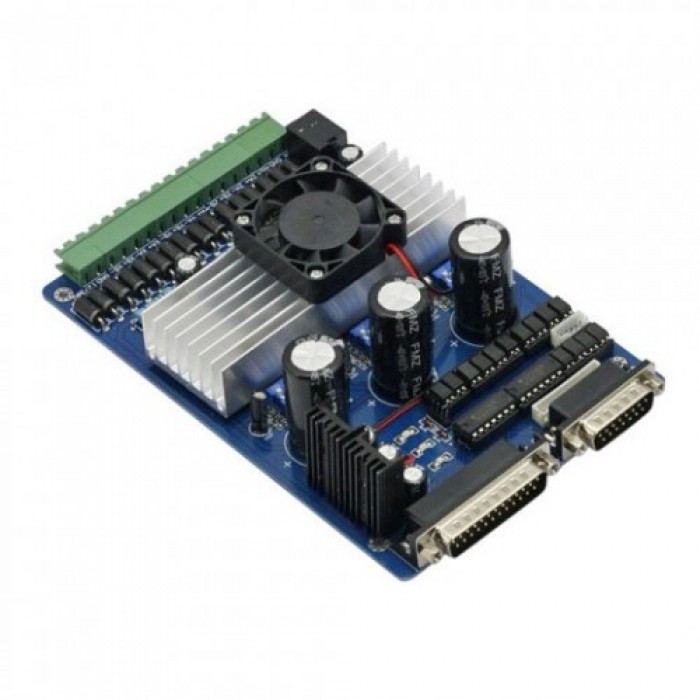

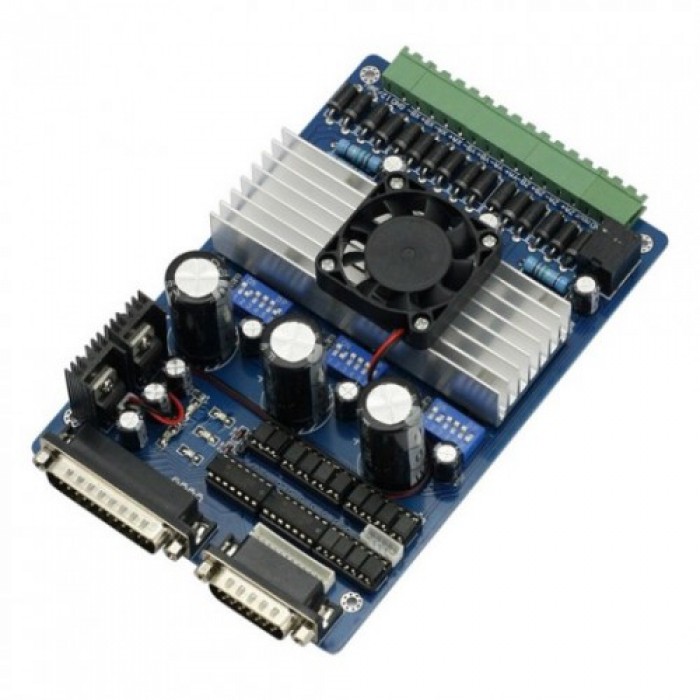

SainSmart CNC TB6560 3 Axis 3.5A Stepper Motor With Toshiba TB6560AHQ Chip
SainSmart CNC TB6560 3 Axis 3.5A Stepper Motor With Toshiba TB6560AHQ Chip SainSmart CNC TB6560 3 Axis 3.5A Stepper Motor With Toshiba TB6560AHQ Chip SainSmart CNC TB6560 3 Axis 3.5A Stepper Motor With Toshiba TB6560AHQ Chip SainSmart CNC TB6560 3 Axis 3.5A Stepper Motor With Toshiba TB6560AHQ Chip SainSmart CNC TB6560 3 Axis 3.5A Stepper Motor With Toshiba TB6560AHQ Chip

SainSmart CNC TB6560 3 Axis 3.5A Stepper Motor With Toshiba TB6560AHQ Chip

Prix : 10.000,00DA
H.T : 10.000,00DA
Modèle : DZD000395
Fabricant : SainSmart
Disponibilité : 4 à 8 Semaines
N° de visites: 914
Qté :


isolation to protect the user's computer and equipment
Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop.
Universal architecture - Supports most parallel software MACH3,KCAM4,EMC2 etc.

Important Notes:
Please connect the power supply to the power switch of DC 12-36 V,



Voltage Selection:
12-16V DC power supply for Nema 17 stepper motors
16-24V DC power supply for Nema 23 stepper motors
24-36V DC power supply for Nema 34 stepper motors
The power output of 12V shall be applied to the radiator fan of 12V
Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
Suitable for unipolar or bipolar stepper motors.
Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.

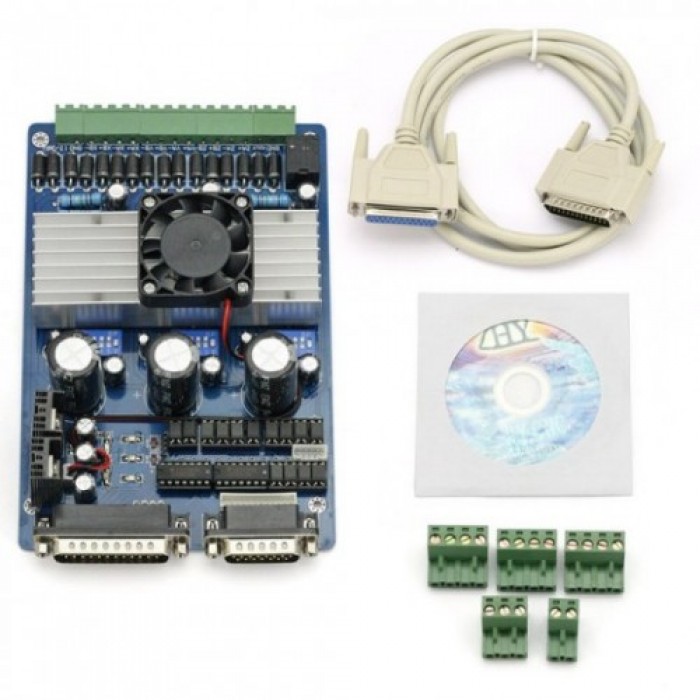

Package Content:
1 x 3 Axis TB6560 Stepper Motor Driver
1 x DB25 parallel cable
5 x Wire connectors
1 x CD software (English Manual & Mach 3)

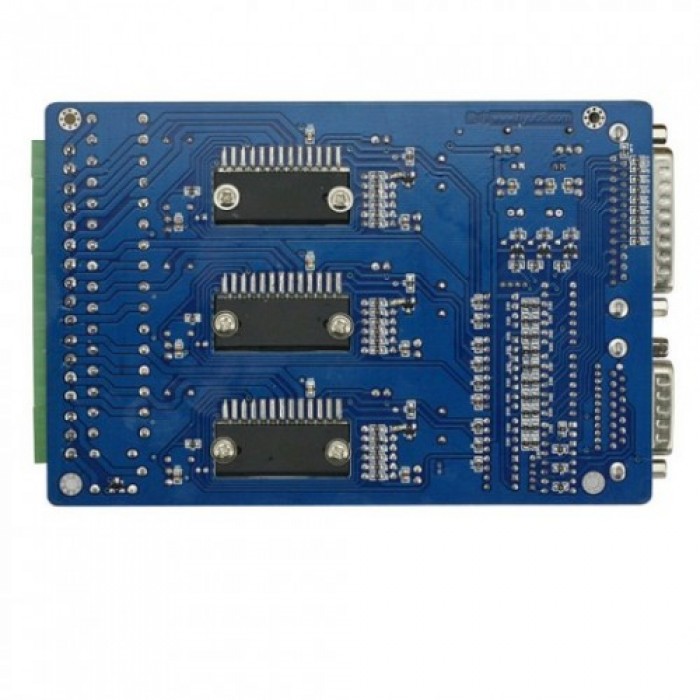

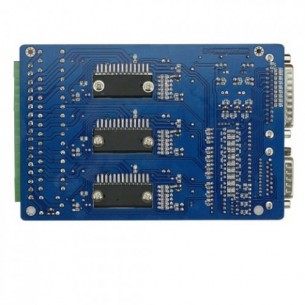

  • Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current.
  • Professional design, two-stage signal processing, super anti-jamming.
  • 1-1/16 microstep setting - Higher accuracy.
  • Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors.
  • Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment.
