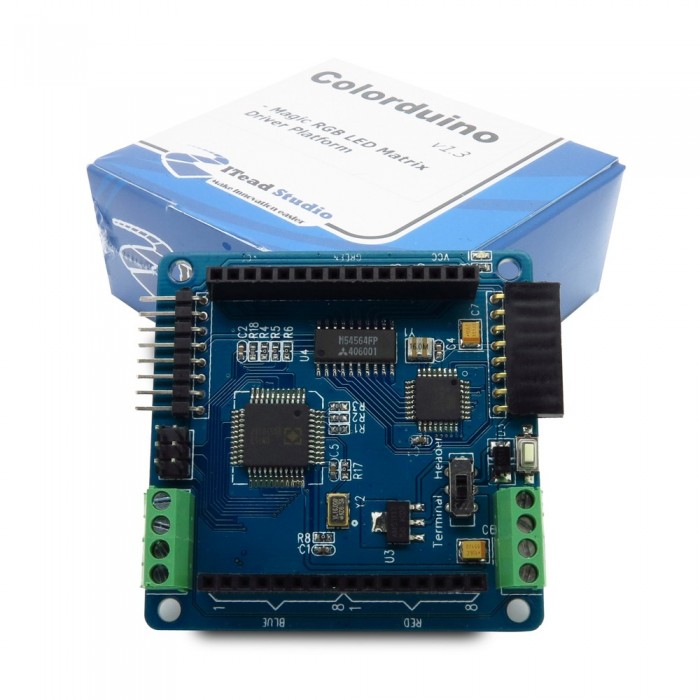

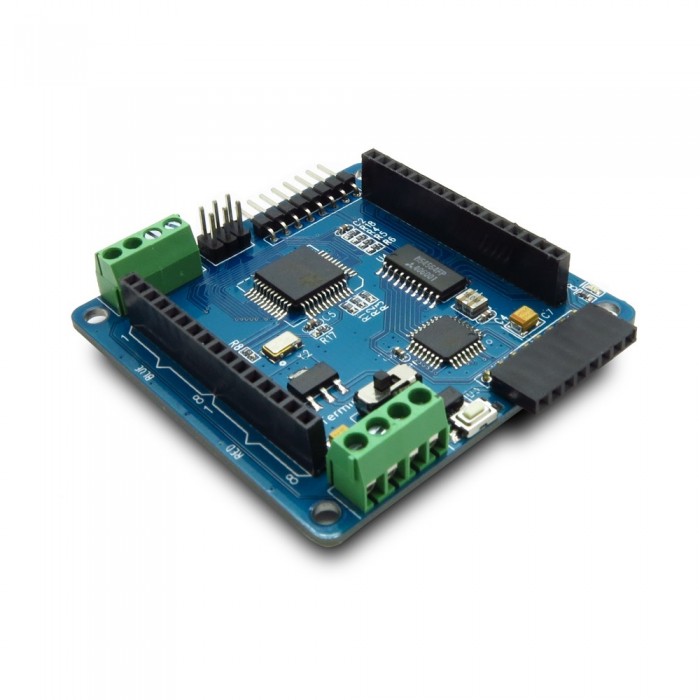

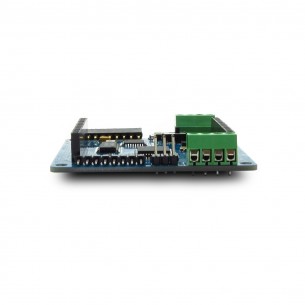

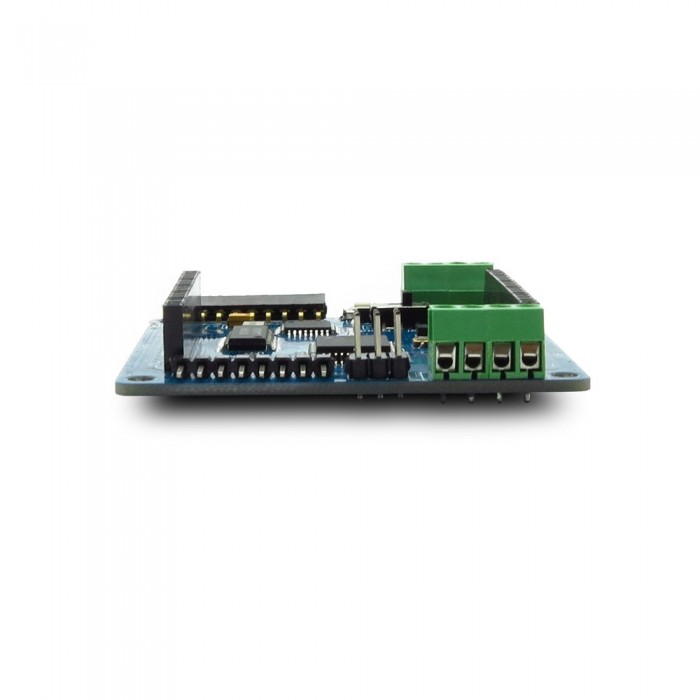

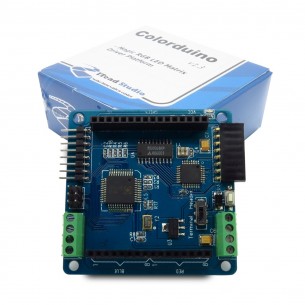

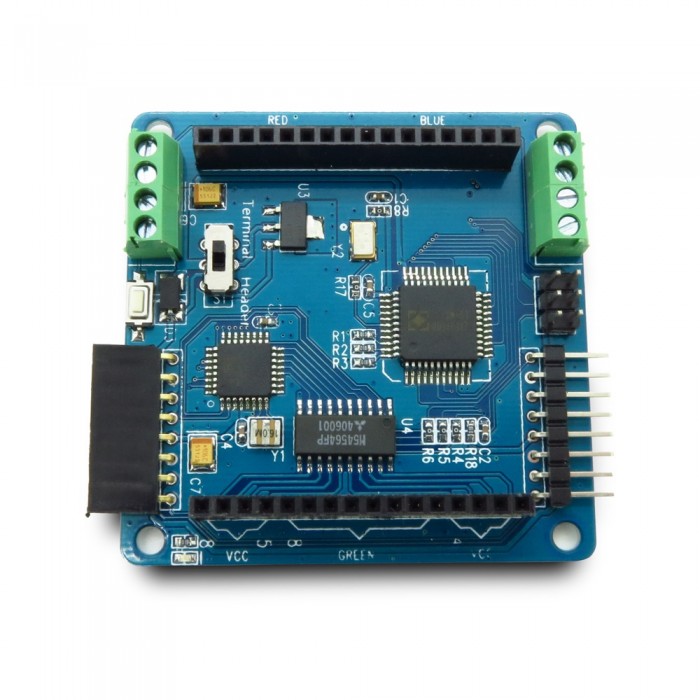

Colorduino
Colorduino Colorduino Colorduino Colorduino Colorduino Colorduino

Colorduino

Prix : 2.500,00DA
H.T : 2.500,00DA
Modèle : DZD000415
Fabricant : IteadStudio
Disponibilité : 4 à 8 Semaines
N° de visites: 788
Qté :


Colorsduino is a magic RGB LED dot-matrix driver compatible with Arduino . Colorsduino pairs the M54564 with a single DM163 constant current driver. By using the DM163, Colorduino gains three 8+6-bit channels of hardware PWM control of the LED’s freeing up the MCU from having to implement it in software. This gives the ATmega328 more CPU bandwidth for performing other tasks. Colorduino is easy to cascade by IIC and Power interface.

Features

  • 8bits colors support with 6bits correction for each color in every dots
  • Hardware 16MHz PWM support
  • Without any external circuits, play and shine
  • Dedicated GPIO and ADC interface
  • Hardware UART and IIC communication with easy cascading
  • 24 constant current channels of 100mA each
  • 8 super source driver channels of 500mA each


Hardware

Colorduino

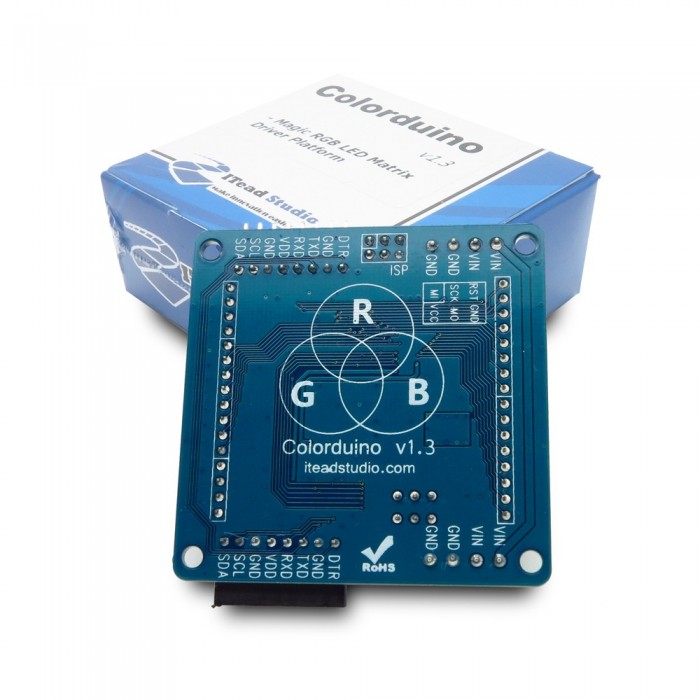

Pad Name Type Description
SDA I/O Data wire of IIC Bus
SCL I/O Clock wire of IIC Bus
GND G Ground plane
VDD P Power wire for all digital components
RXD I/O Data wire of UART Bus
TXD I/O Data wire of UART Bus
DTR I Special reset wire of Arduino program
VIN P Power wire for all LEDs and Super current driver
MI I/O Data input of ISP
MO I/O Data output of ISP
SCK I/O Clock input of ISP
RST I Reset input of ISP

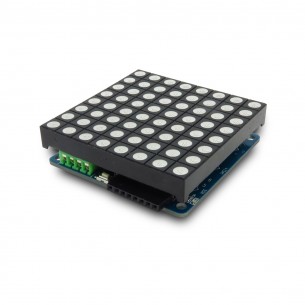

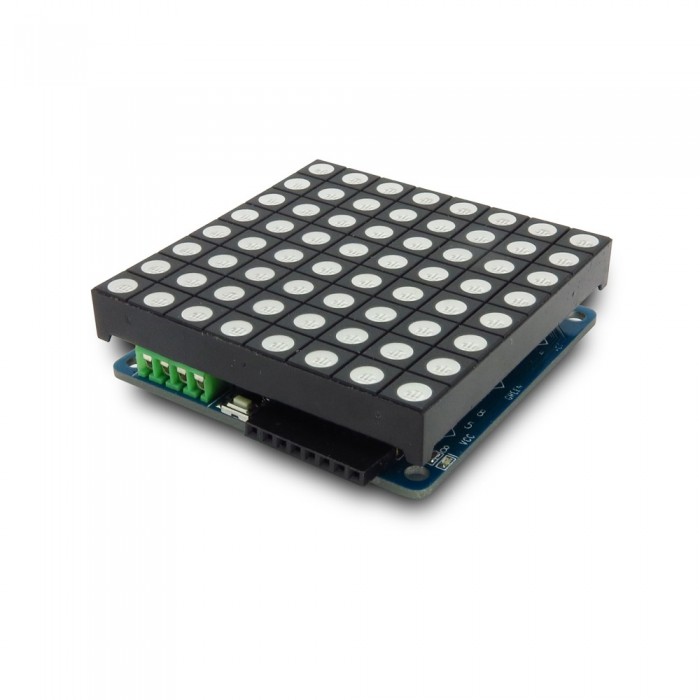

Actual Effect

Colorduino Light

Microcontroller ATMega328P
Max Frequency 16M
RAM Capacity 2K
FLASH Capacity 32K
External Resources No
Power Supply
  • External 5V
  • External 7V
I/O Operation Level 5V
Board Size 60mm x 60mm
Model IM120410004
Version 1.3
Weight 40.00g
Accessories No

Datasheet

Demo Code

Schematic

Fritzing Parts

Lampduino - an 8x8 RGB Floor Lamp

Lampduino is a computer-controlled free-standing floor lamp, comprised of an 8x8 RGB LED matrix. The lamp stands 45" high and 18" wide.  Light emanates from both sides.
